• You spot an obvious design problem
• know how to improve that,
• but the thought about consequences gives you a stomach ache.

• Makes application change easier
• Safety net - provides confidence/removes fear
• Documentation
• Help to localize where exactly a defect is located
• Reduce the chance of new bugs
• Automation enables earlier feedback, saves time, helps focusing on solving the main problem. (Not everything is feasible to automate)

• All the things we need to have in place in order to run a test and expect a particular outcome
• The test context

The system that is being tested

1. Arrange (set up the Fixture)
2. Act (exercise the System Under Test)
3. Assert (verify results are as expected)
4. Tear Down the fixture (to isolate other tests from this one)

• Tests small individual unit (module, procedure/function)
• In isolation (no interaction with other units)
• Should run quickly (otherwise people won't run them)

• Tests several modules as a group
• Slower than unit tests (usually)

• Conducted to determine whether or not a system satisfies its acceptance criteria
• and to enable the customer to determine whether or not to accept the system.
• At least modeled and possibly even written by the customer
• End-to-end (slower than Integration & Unit tests)

Performed to make sure that previously working functionality still works after changes elsewhere in the system

Is the the process of changing a system in such a way that

• doesn't alter external behaviour
• and improves it's internal structure (design)
• through small steps

Doing refactoring without tests is unsafe

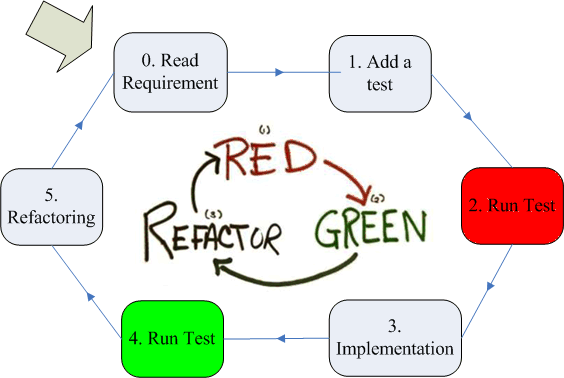

• TDD is a design technique
• The design emerges in small steps

• Start with end in mind (think from point of view of caller)
• This perspective helps for better design
• Test coverage is useful byproduct
• Greatly reduces the need of debugging

• For lot of businesses, data held in DB are the most vital commercial asset they have
• Business critical functions rely on this data
• So it makes sense to validate that data is stored and processed correctly

• Bad tools
  • Too much boilerplate code
  • OO tools not directly applicable for RDBMS
• Inherently hard to test. Isolation is difficult
  • Changes are persistent
  • Shared environment
  • Triggers, Constraints
• Attitude ("it's not my job")

• Makes them repeatable and independent
• When one transaction is not an option - clean up after tests

• One db per contributor
• Separate schemas
• Shared Dev db may work too
• As a rule - avoid running tests on top of production

• Make tests self-sufficient
• Don't count on the order of tests
• Prepare everything you need for the test in its set-up

• Initially created by Gojko Adzic:
  • to enable efficient database testing
  • motivate database developers to use an automated testing framework
• Enables manipulating database objects and defining tests in tabular form
• Open source https://github.com/benilovj/dbfit

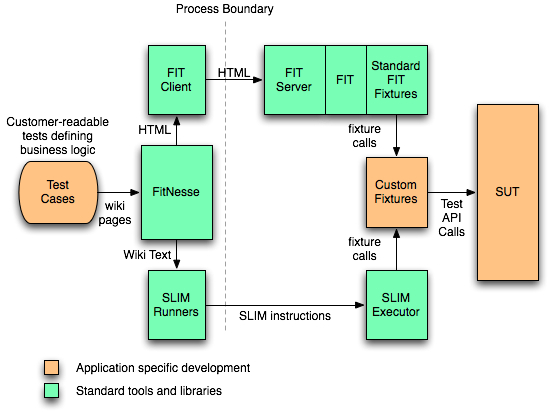

• DbFit is based on FIT+FitNesse+DB Fixtures which enable FIT/Fitnesse tests to execute directly against a database.
• FIT is Acceptance testing framework
  • customer oriented
  • tests are described as tables
• FitNesse is Wiki-web based front-end for FIT

• A fixture is interface between:
  • the test instrumentation (Fit framework),
  • test cases (Fit tables),
  • and the system under test (e.g. a database stored procedure)
• In general there is 1:1 mapping between Fit table and fixture

• Easy to use (even for non-technical people)
  • Tests expressed and managed as tables
  • Web-Wiki front-end
• Provides all the plumbing:
  • Transaction management
  • Features based on meta-data
  • Parameter mapping
• Runs inside FitNesse - already integrated with lots of other tools/libraries

• The simplest online database that could possibly work. - Ward Cunningham
• Allows users to freely create and edit Web page content using any Web browser
• A group communication mechanisms
• Encourages democratic use of the Web and promotes content composition by nontechnical users

• Hierarchies - SubWiki, Test Suites
• Page types - Suite, Test, Static
• Some special pages:
  • PageHeader, PageFooter
  • SetUp, TearDown, SuiteSetUp, SuiteTearDown
  • Inherited recurively by default; can be overriden
• http://fitnesse.org/FitNesse.UserGuide

1. Set up the input data (arrange).
2. Execute a function or procedure (act).
3. Run a query and compare actual vs expected data (assert).

• Query
• Insert
• Update
• Execute Procedure
• Execute

• Inspect queries, tables, procedures to auto-generate test tables and regression tests
• Store and compare queries
• Standalone mode for full control

1. Needs Java to run
2. Download: http://benilovj.github.io/dbfit
3. Unzip
4. Copy Oracle JDBC driver (ojdbc6.jar) to lib subfolder
5. Run the startup script (startFitnesse.sh or startFitnesse.bat)
6. Access via web browser - http://localhost:8085

Inline configuration:

!|Connect|localhost:1521|username|password|dbname|

Using properties file:

!|ConnectUsingFile|DBConnection.properties|

service=localhost:1521
username=username
password=password
database=dbname

!|insert|testtbl|
|n      |name   |
|1      |NAME1  |
|3      |NAME3  |
|2      |NAME2  |

!|query|select * from testtbl|
|n     |name                 |
|1     |NAME1                |
|3     |NAME3                |
|2     |NAME2                |

!|insert|testtbl|
|n      |name   |
|1      |NAME1  |
|3      |NAME3  |
|2      |NAME2  |

!2 No parameters
!|Execute Procedure|do_stuff|

!2 Functions - return values with "?"
!|Execute Procedure|zlpad_notrunc        |
|p_str             |p_padded_len|?       |
|'12'              |5           |'00012' |

!2 OUT parameters - "?" suffix
!|Execute Procedure|split_name|
|p_fullname |p_first_name?|p_last_name?|
|Mikey Mouse|Mickey       |Mouse       |

!2 IN OUT parameters - specify twice
!|Execute Procedure|make_double|
|x|x?|
|3|6 |

!2 Expect ORA-20013
!|Execute procedure expect exception|set_age|20013|
|p_age                                            |
|-5                                               |

• set parameter to set parameter directly
• >>paramname - store a value
• <<paramname - read the value

!|set parameter|ONE|1|

!|query|select sysdate mytime from dual|
|mytime?                               |
|>>current_time                      |

!|query|select count(*) cnt from dual where sysdate >= :current_time|
|cnt                                                                 |
|<<ONE                                                               |

!|Store Query|select 1 n from dual union select 2 n from dual|firsttable|

!|query|<<firsttable|
|n                  |
|1                  |
|2                  |

!|insert|testtbl|
|n      |name   |
|1      |NAME1  |
|3      |NAME3  |
|2      |NAME2  |

|Store Query|select * from testtbl|fromtable|

|Store Query|!- select 1 n, 'name1' name from dual|fromdual|

|compare stored queries|fromtable|fromdual|
|name                  |n?                |

• Use ? suffix for non-key columns

• Flow
• Standalone

• A DatabaseTest fixture controls the whole page and coordinates testing
  • OracleTest, MysqlTest, DerbyTest, DB2Test, ...
• Automatic rollback at the end (manual commit or rollback is still possible)
• Better isolation
• Some additional features such as inspections of stored procedure error results

• We are responsible for transaction management
• Enables more control over the database testing process
• Allows using other individual fixtures
• We can supply our own database connection to make sure that (Java) integration tests are running in the same transaction

!3 In Flow mode
!|dbfit.OracleTest|
!|Connect|ourhost:1521|dbusername|dbpassword|mydb|

# Alternatively - TNS descriptor can be used:
#!|Connect|(DESCRIPTION=(ADDRESS=...))|

!3 In Standalone mode
|import fixture|
|dbfit.fixture|
!|DatabaseEnvironment|oracle|
|connect|localhost:1521|dbusername|dbpassword|mydb|

• Compile CommandLineFixture (by Bob Martin)
• Use it to run a shell script

!3 Load some data with Oracle SQL*Loader
|com.objectmentor.fixtures.CommandLineFixture       |
|command|${PROJECT_ROOT}/loaderdemo/load_employee.sh|

!|Query|select * from employee   |
|id    |name? |dept?     |salary?|
|100   |Thomas|Sales     |5000   |
|200   |Jason |Technology|5500   |
|300   |Mayla |Technology|7000   |
|400   |Nisha |Marketing |9500   |
|500   |Randy |Technology|6000   |
|501   |Ritu  |Accounting|5400   |

• Running tests from command line

  java -jar fitnesse-standalone.jar \
      -d "${TESTS_DIR}" \
      -c "BgougDemoSuite?suite&format=text"


• Run test or suite as RESTful service http://fitnesse.org/FitNesse.UserGuide.RestfulServices

• JUnit

• Simple text files
• content.txt - test definition and other Wiki content
• properties.xml - metadata (Test, Sute)
• Easy to put under version control

• Changes of database code and schema are often relatively hard
• This makes the systems considered legacy
• TDD stimulates designing cleaner and easier to change code
• Development of RDBMS artefacts is lagging when it comes to engineering practices and tools
• DbFit can help
